Applicable card: TEMIC contactless RF card or MIFARE ONE contactless RF card.
Power supply: 4pcs standard AA alkaline batteries.
Battery life: About 10 months in normal state, depending on usage and climatic conditions.
Low voltage warning: When power’s voltage is less 4.5V, there will be warning when
unlock. The lock still can be unlocked about 100 times before the batteries are replaced.
Static consumption: 12uA
Dynamic consumption: 200mA
Open time: The lock will be locked again automatically 7 seconds after unlocking.
Reliability of card operation: No accident for 1000 times of continuous card operation.
Emergency unlocking: The door can be unlocked by Master Card or Mechanical key even
though the deadbolt works.
Installation request: To be installed on the door, with the door thickness between 33mm to
85mm, and if the door surface is decorated, the distance between the decoration edge to the door edge must be over 86mm.

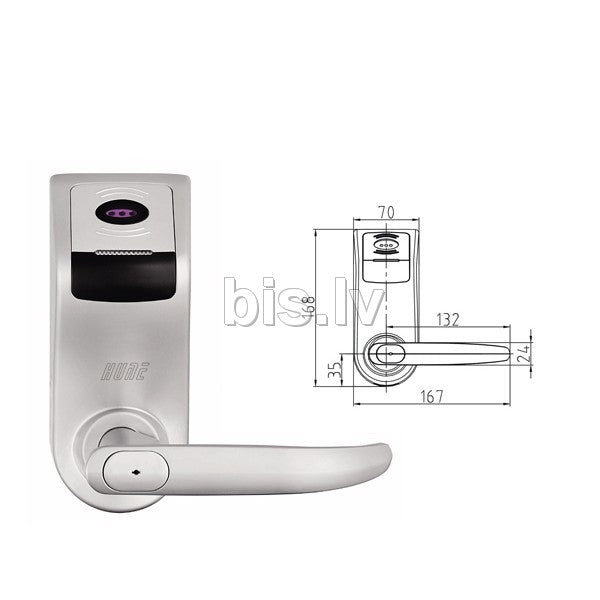

Panel size:168mm( Height) ×70mm (Width) ×59mm (Thickness)
Mortise size: Standard single latch 60mm
Handle orientation: left hand push to open, right hand push to open; left hand pull to open,
right hand pull to open.
All locks are custom made to order and are non refundable.
